Magnesium Fluoride
Used as transparent barriers for sending and receiving light between two phases under varying conditions in temperature pressure chemical composition cleanliness and phase. Windows of synthetic optical MgF2 are highly abrasion-resistant with hardness approaching that of diamonds. The material allows transmission of light in the range from ultraviolet to near-infrared.
Standard Specifications
|
Items
|
Specifications
|
|
Material
|
Magnesium Fluoride Single Crystal
|
|
Designed Index
|
1.376 ±0.0005 @ 700nm
|
|

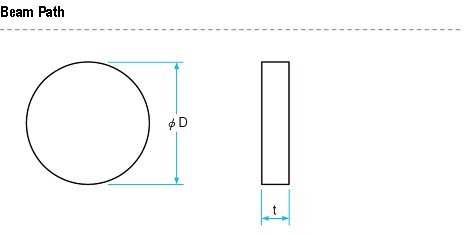

Dimension Tolerance
|
+0.0/-0.2 mm
|
|
Thickness Tolerance
|
± 0.2 mm
|
|
Clear Aperture
|
> 80%
|
|
Parallelism
|
< 1 arc minutes
|
|
Flatness
|
λ/4 at 632.8 nm
|
|
Surface Quality
|
scratch and dig 40-20
|
|
Bevel
|
0.5 (0/-0.3) mm
|
